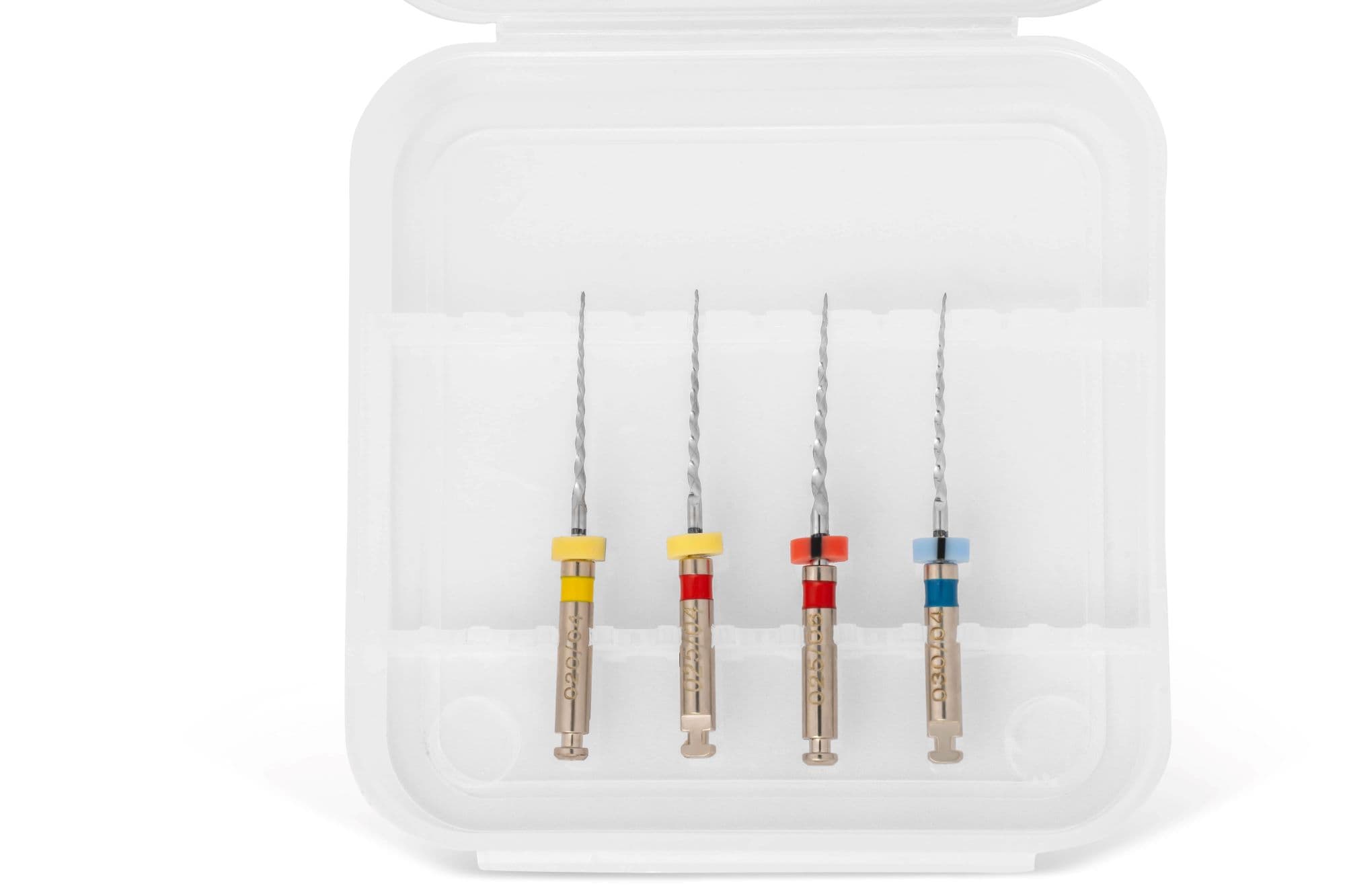

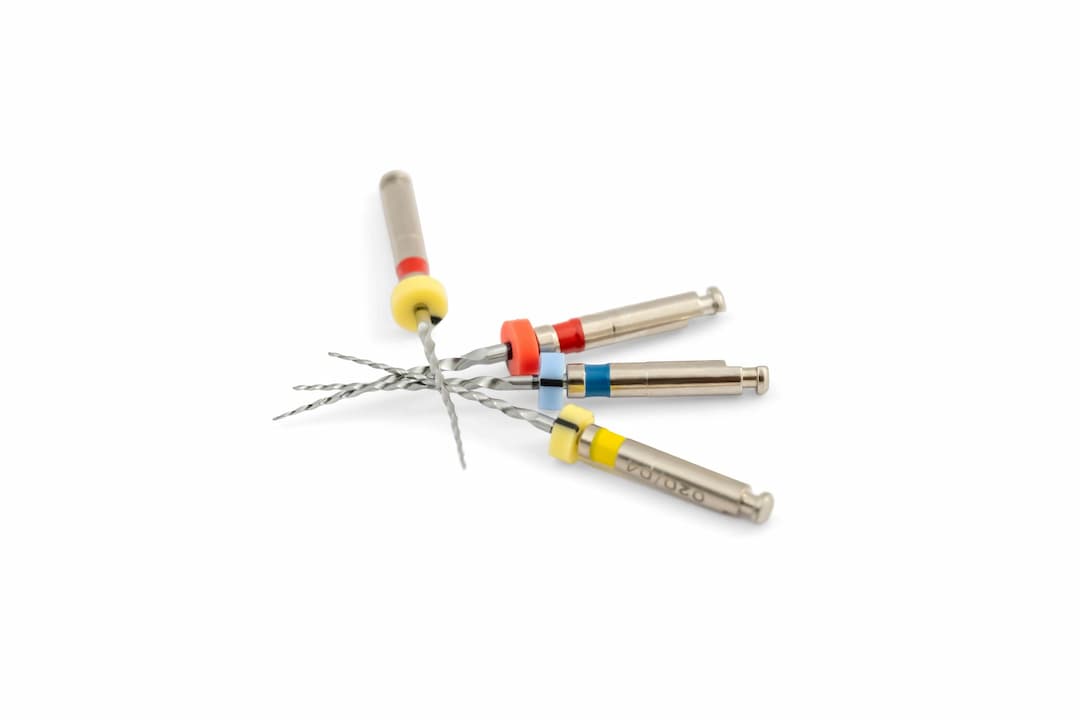

B. baby file
Primary root canal wall is fragile and the length is short.
the good way to protect them by using B baby file for root canal treatment .
the thread design is short matching the short root canal of baby’s teeth.
The small files protects the fragile root canal wall of baby’s teeth effectively.
The thread is designed from the tip of the files to the back to facilitate evacuation of debris .
Recommended rotary speed: 300RPM, torque: 2.0N.cm

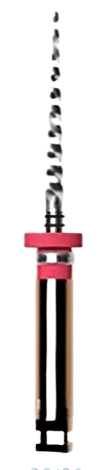

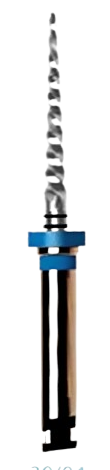

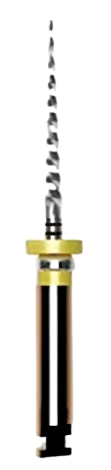

Taper: 04Diameter: 20Length: 18 mmTorque: 2 N.CMSpeed: 300 RPM
Taper: 04Diameter: 25Length: 18 mmTorque: 2 N.CMSpeed: 300 RPM
Taper: 06Diameter: 25Length: 18 mmTorque: 2 N.CMSpeed: 300 RPM
Taper: 04Diameter: 30Length: 18 mmTorque: 2 N.CMSpeed: 300 RPM
The wider space of the cutting edge stores more dentin debris, allowing the debris to be discharged from the spiral and avoiding apical blockage.
Unique 3S cross section
- A rounded safety guide tip without a blade
- Three sharp cutting edges
- Guiding tip without cutting force
- Large and deep chip space
- Avoid LEDGE FORMATION, offset, lateral penetration, or root tip
- Minimal root canal wall contact
Selection of the most advanced third-generation Nitinol material, with more excellent fatigue resistance and flexibility.
Product Information
| Tensile Strength (Mpa) | UPS (Mpa) | LPS (Mpa) | Elongation (%) |
|---|---|---|---|
| 1409.1 | 575.2 | 175.6 | 17.43 |
| 1315.2 | 555.3 | 162.7 | 18.50 |
| Composition(%) | Ni | C | N | H | O | Co | Si | Cu | Fe | Nb | Ti |
| Test result(%) | 55.82 | 0.043 | 0.005 | 0.0041 | 0.045 | <0.0001 | 0.07 | <0.0001 | 0.016 | <0.0005 | Remainder |
