B. flex blue file
FLEX Blue file specially designed for complex root canals such as curved narrow and calcified root canals. It can minimize the risk of instrument separation and avoid step side piercing to deal with difficult root canals with confidence.
Taper: 08Diameter: 15Length: 19 mmTorque: 1.5 N.CMSpeed: 300 RPM
Taper: 03Diameter: 15Length: 25 mmTorque: 1.5 N.CMSpeed: 300 RPM
Taper: 04Diameter: 20Length: 25 mmTorque: 2.5 N.CMSpeed: 500 RPM
Taper: 04Diameter: 20Length: 25 mmTorque: 2.5 N.CMSpeed: 500 RPM
The wider space of the cutting edge stores more dentin debris, allowing the debris to be discharged from the spiral and avoiding apical blockage.
Unique 3S cross section
- A rounded safety guide tip without a blade
- Three sharp cutting edges
- Guiding tip without cutting force
- Large and deep chip space
- Avoid LEDGE FORMATION, offset, lateral penetration, or root tip
- Minimal root canal wall contact
Selection of the most advanced third-generation Nitinol material, with more excellent fatigue resistance and flexibility.
Product Information
| Tensile Strength (Mpa) | UPS (Mpa) | LPS (Mpa) | Elongation (%) |
|---|---|---|---|
| 1409.1 | 575.2 | 175.6 | 17.43 |
| 1315.2 | 555.3 | 162.7 | 18.50 |
| Composition(%) | Ni | C | N | H | O | Co | Si | Cu | Fe | Nb | Ti |
| Test result(%) | 55.82 | 0.043 | 0.005 | 0.0041 | 0.045 | <0.0001 | 0.07 | <0.0001 | 0.016 | <0.0005 | Remainder |

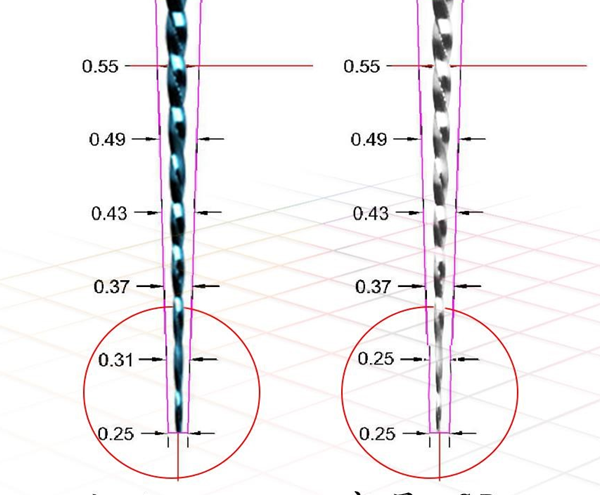

b. flex blue:Tip 2mm changed design standard taper dense filling.
b.silver :Tip 2mm unchanged design Smooth operation For small curvature of the root canal
b.silver :Tip 2mm unchanged design Smooth operation For small curvature of the root canal
